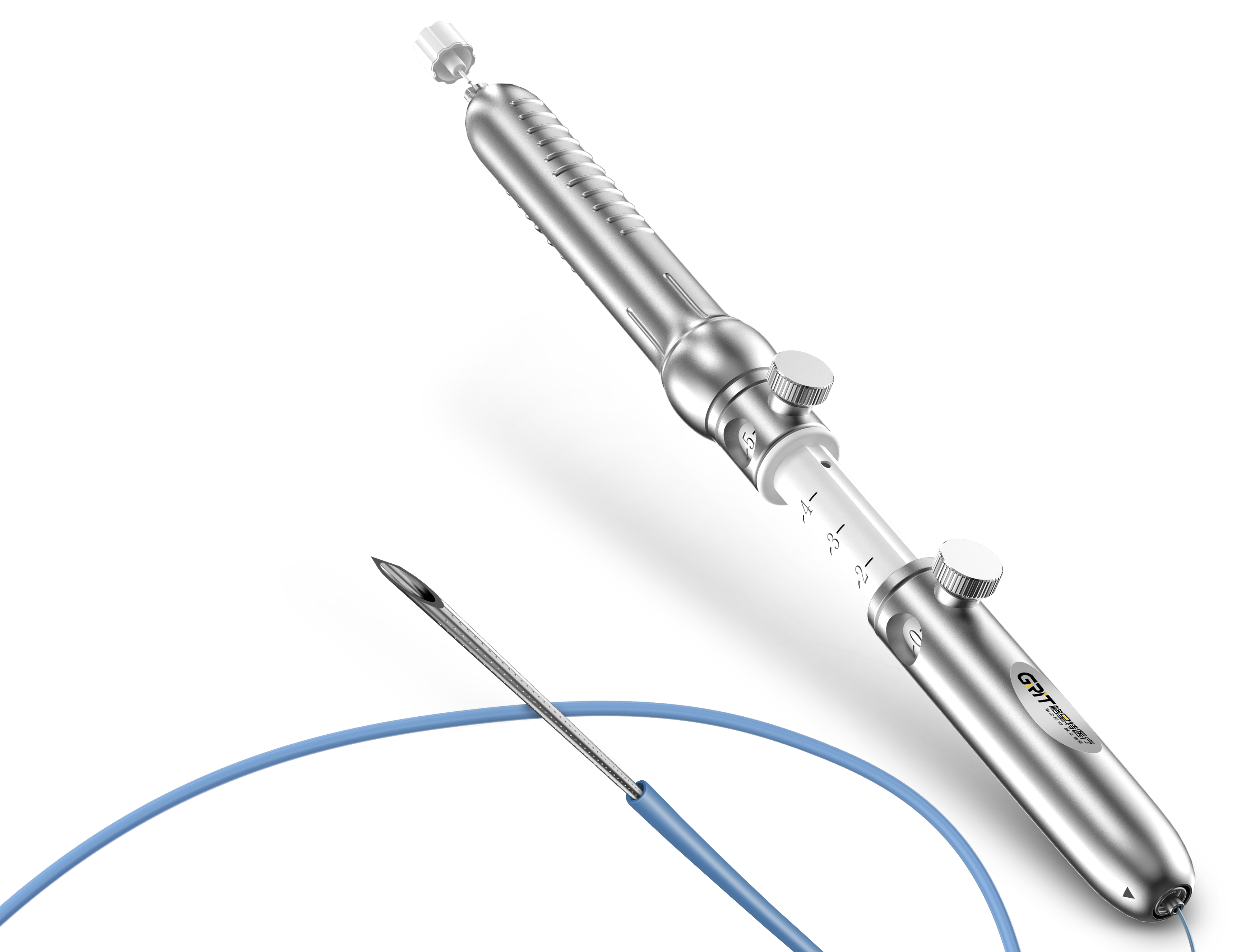

Disposable Ultrasound Biopsy Needles
Disposable Ultrasound Biopsy Needles
Disposable Ultrasound Biopsy Needles
Disposable Ultrasound Biopsy Needles
Disposable Ultrasound Biopsy Needles
Disposable Ultrasound Biopsy Needles
Disposable Ultrasound Biopsy Needles
Disposable Ultrasound Biopsy Needles
Disposable Ultrasound Biopsy Needles
Disposable Ultrasound Biopsy Needles

Disposable Ultrasound Biopsy Needles

 EBUS-FNA/EUS-FNA

Model GM-UN
Classification Class II
Material Ni-Ti alloy, Stainless Steel
Get a Quote
  • Product Introduction
  • Specifications
  • Related products
Product Introduction
Product name
Disposable Ultrasound Biopsy Needle
Brand Name
GRIT
Model Number
GM-UN-MAE
Sterile Type
EOS
Size
EBUS 670/695/715mm; EUS 1360/1375mm
Working Length
670/695; 1360/1375mm
Shelf Life
2 years
Material of needle
Stainless steel/Ni-Ti alloy
Quality Certification
CE0197/ISO13485
Instrument classification
Class II
Material of sheath
PEEK/FEP
Needle gauge
19G/21G/22G/25G
Max needle length
EBUS 50mm/EUS 80mm
Properties
Microsurgery Equipments

Specifications
Model Needle set of
outer diameter
(mm)		 Effective length
of needle sleeve
(mm)		 Outside the
tube diameter
(mm)		 Effective length
of outer tube
(mm)		 Endoscopic
Channelice
(mm)
GM-UN-MAE-A-19-11/50-16/670 Φ1.1 50 Φ1.6
Φ1.6		 670 Φ2.0
Φ2.0
GM-UN-MAE-A-19-11/50-16/695 Φ1.1 695
GM-UN-MAE-A-19-11/50-16/715 Φ1.1 715
GM-UN-MAE-A-21-08/50-16/670 Φ0.8 670
GM-UN-MAE-A-21-08/50-16/695 Φ0.8 695
GM-UN-MAE-A-21-08/50-16/715 Φ0.8 715
GM-UN-MAE-A-22-07/50-16/670 Φ0.7 670
GM-UN-MAE-A-22-07/50-16/695 Φ0.7 695
★GM-UN-MAE-A-22-07/50-16/715 Φ0.7 715
GM-UN-MAE-A-25-05/50-16/670 Φ0.5 670
GM-UN-MAE-A-25-05/50-16/695 Φ0.5 695
GM-UN-MAE-A-25-05/50-16/715 Φ0.5 715
GM-UN-MAE-C-19-11/50-16/695 Φ1.1 695
GM-UN-MAE-C-21-08/50-16/695 Φ0.8 695
GM-UN-MAE-C-22-07/50-16/695 Φ0.7 695
GM-UN-MAE-C-25-05/50-16/695 Φ0.5 695
GM-UN-MAE-A-19-11/80-16/1360 Φ1.1 80 1360
GM-UN-MAE-A-19-11/80-16/1375 Φ1.1 1375
GM-UN-MAE-A-21-08/80-16/1360 Φ0.8 1360
GM-UN-MAE-A-21-08/80-16/1375 Φ0.8 1375
GM-UN-MAE-A-22-07/80-16/1360 Φ0.7 1360
GM-UN-MAE-A-22-07/80-16/1375 Φ0.7 1375
GM-UN-MAE-C-19-11/80-16/1360 Φ1.1 1360
GM-UN-MAE-C-19-11/80-16/1375 Φ1.1 1375
GM-UN-MAE-C-21-08/80-16/1360 Φ0.8 1360
GM-UN-MAE-C-21-08/80-16/1375 Φ0.8 1375
GM-UN-MAE-C-22-07/80-16/1360 Φ0.7 1360
GM-UN-MAE-C-22-07/80-16/1375 Φ0.7 1375
GM-UN-MAE-A-19-11/80-27/1375 Φ1.1 Φ2.7 1375 Φ3.2
GM-UN-MAE-A-21-08/80-27/1375 Φ0.8 1375
GM-UN-MAE-C-22-07/80-27/1375 Φ0.7 1375
