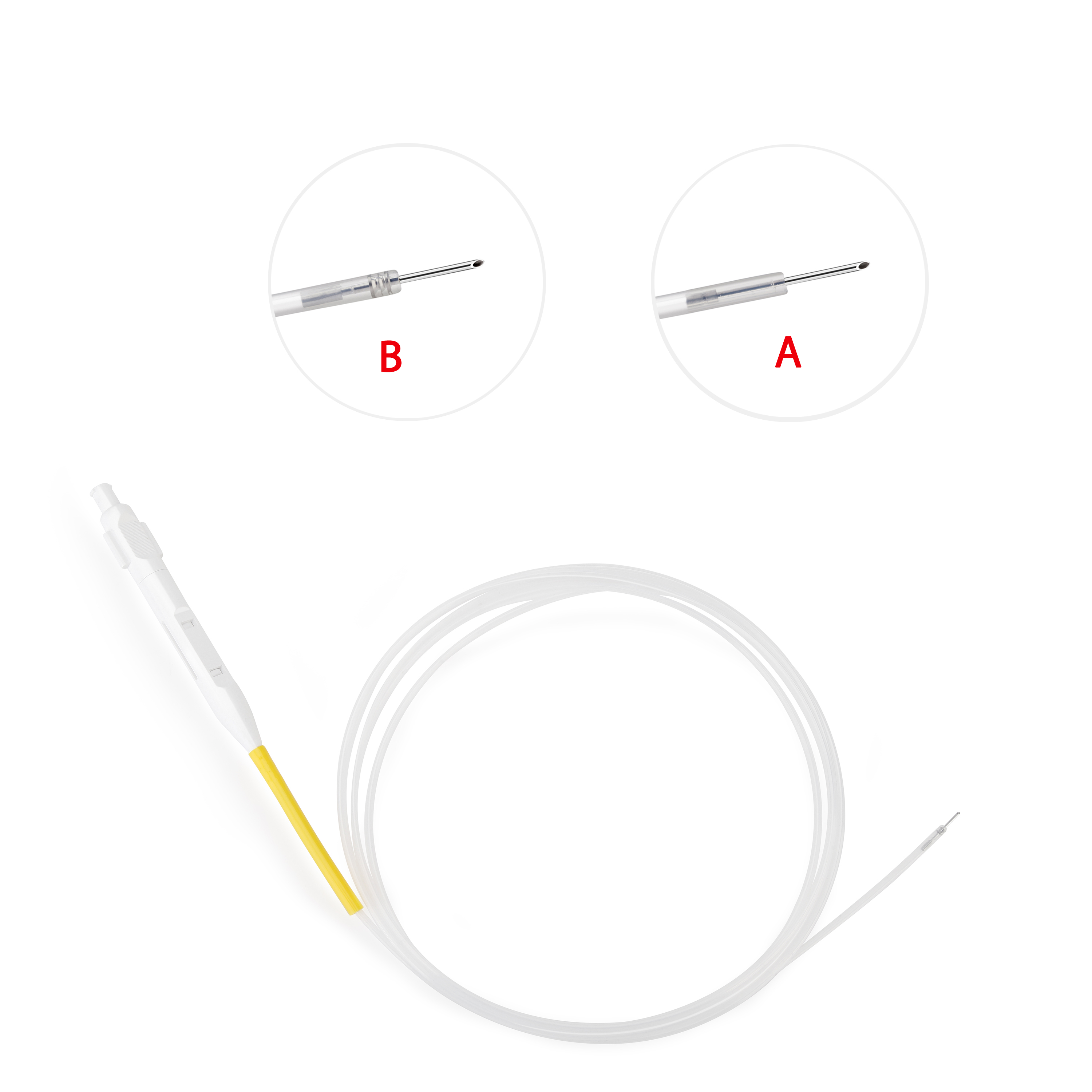

Disposable Endoscope Injection Needles

Injection needle is intended for submucosal injection in digestive tract combined with endoscope.

Model	GM-IN
Classification	Class II
Material	Stainless steel, ABS

Product Introduction
Specifications
Related products

Product Introduction

Clinically, disposable injection needle is a medical device that pass the endoscope channel into the alimentary canal or gastrointestinal tract to perform injection to the gastrointestinal mucosa, injects sclerosing or hemostatic drugs to the selected area by using endoscope to control the present haemorrhage or potential haemorrhage spot in the digestive system , and operates the injection of physiological saline after endoscopic mucosal biopsy amd polypectomy.

Specifications

Model	O.D.(mm)	Working Length(mm)	Needle Model	Needle Length(mm)	Endoscopic Channel(mm)	Characteristic
GM-IN-A-23-1600-23-4	2.3	1600	23G	4	≥2.8	Without metal cap
GM-IN-A-23-2000-23-5	2.3	2000	23G	5	≥2.8
★GM-IN-A-23-2300-23-6	2.3	2300	23G	6	≥2.8
GM-IN-A-23-2300-23-5	2.3	2300	23G	5	≥2.8
GM-IN-B-23-1600-23-4	2.3	1600	23G	4	≥2.8	With metal cap
GM-IN-B-23-2000-23-6	2.3	2000	23G	6	≥2.8
GM-IN-B-23-2300-23-5	2.3	2300	23G	5	≥2.8
GM-IN-B-23-2300-23-6	2.3	2300	23G	6	≥2.8
